2023 Electric Upgrade Kit (Solves Intermittent Power)
2023 Electric Upgrade Kit (Solves Intermittent Power)
Kit includes:

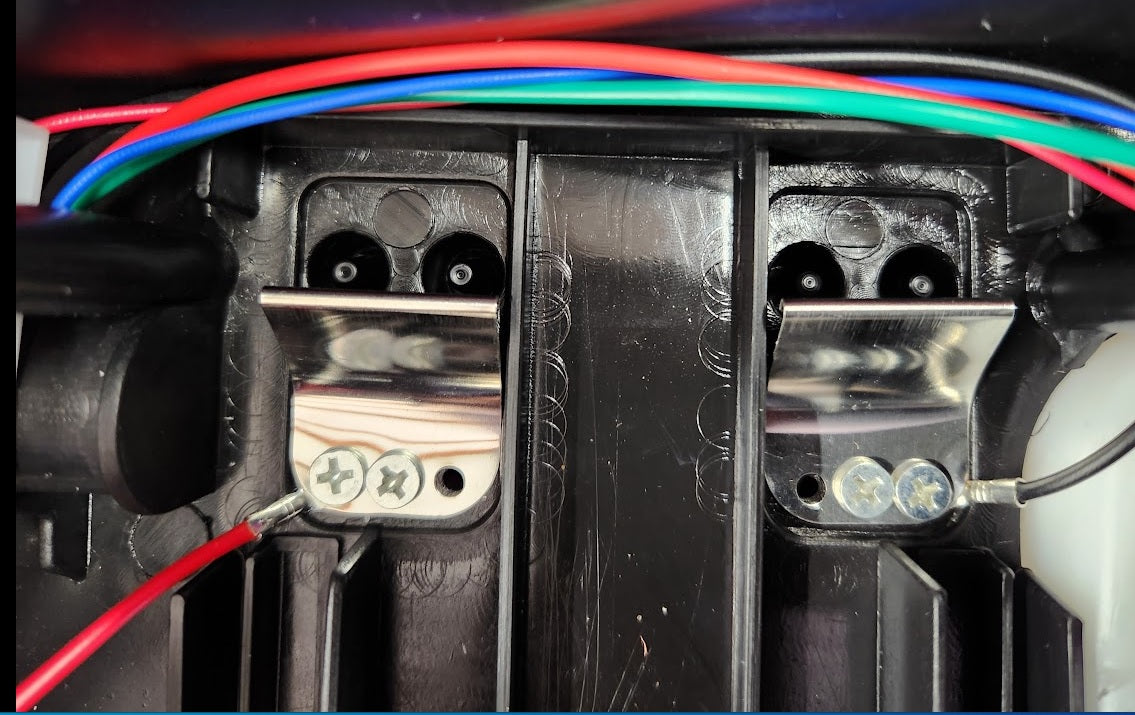

The latest battery spring plate design for 2023 prevents intermittent connection issues between SLA and lithium ion battery electrodes and battery spring plates.
Contents:

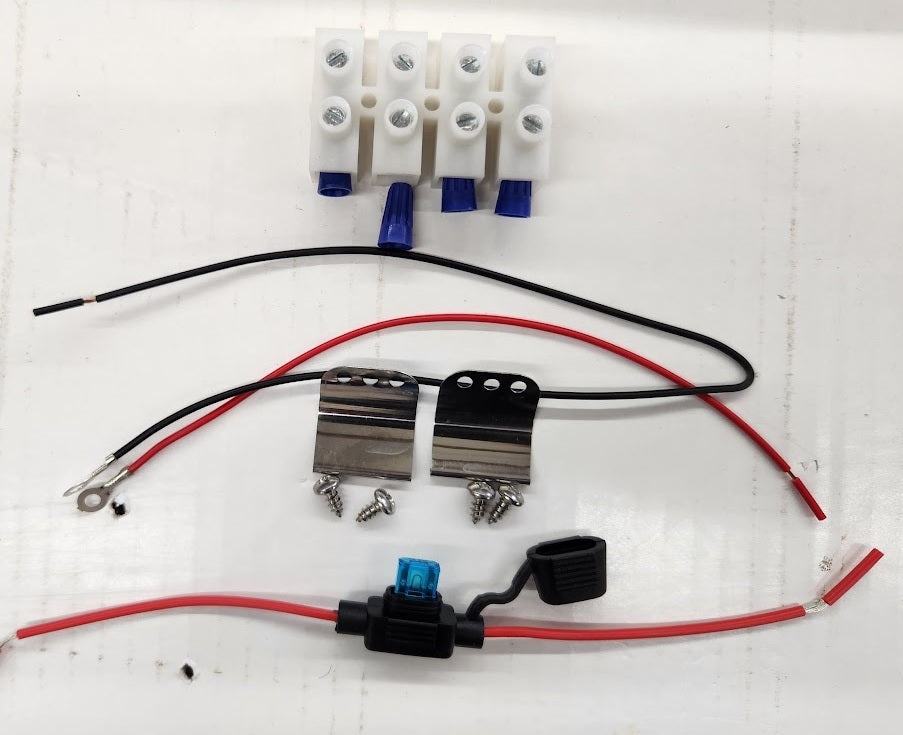

2 high deflection battery spring plates, 4 stainless battery plate screws, red and black donut end wires, 15 amp fuse assembly, 4 circuit euro connector, 4 blue wire nuts ( 4 count).
Directions:

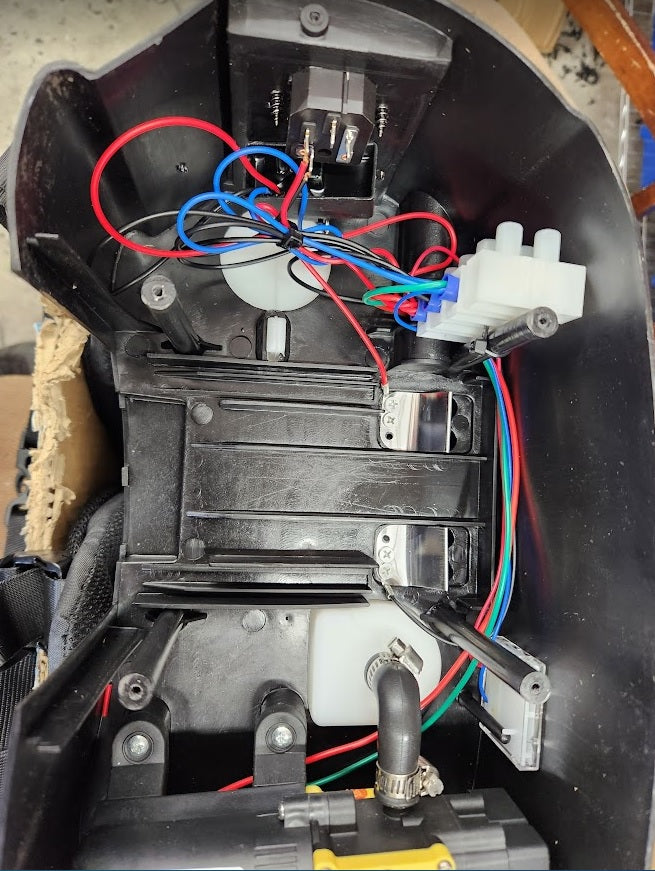

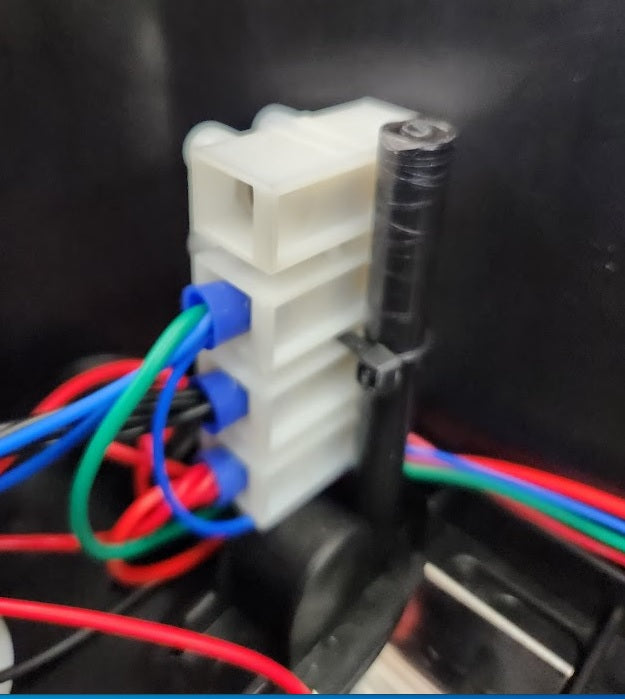

Tie black, blue and red bundles together with blue wire nuts. Do not mix wire colors (except the ground wire from the pump motor can be green, black, or blue, which is connected to the blue bundle.) Insert wire nuts into euro connectors and screw to lock down.
