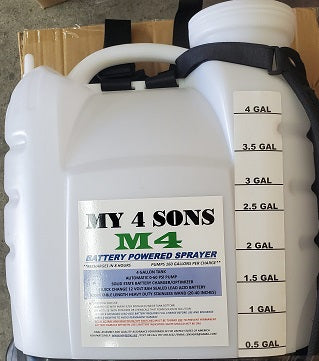

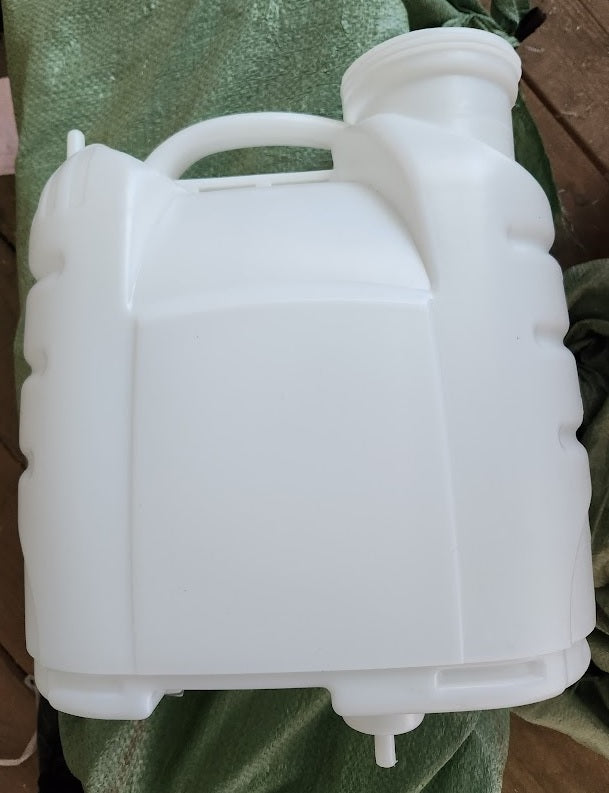

M4 Replacement Tank (4.5 gallons)
M4 Replacement Tank (4.5 gallons)
Replaces the M4 Tank. Does not fit mini M4.
Tank Removal: (It's a pain!)
1) Remove the base plate. (Turn M4 upside down, remove 7 #2 phillips screws) Cut off the two tank lock nubs from inside the base (one nub requires removing pump to access).
2) Unsnap tank from base by compressing/crushing tank sides or cutting slices into tank on each side of the 6 lock tabs. Hammer a large flathead screwdriver/wedge between the tank and base in at least 2-3 adjacent locations where tank lock recesses engage base lock protrusions.
Tank Installation: (It's a snap!)
1) Snap tank into base.
2) Re-connect elbow to tank intake barb.
3) Re-install base plate.
